PZ46 Series-Single Cartridge Type-TF Seals USA

Elastomer Bellow Mechanical Seal TF PB01

Elastomer Bellow Mechanical Seal TF PB05

Elastomer Bellow Mechanical Seal TF PB07

Elastomer Bellow Mechanical Seal TF PB20

The PZ46 series cartridge seal offers a comprehensive and cost-effective sealing solution for industrial liquid applications. Designed for rotating shaft equipment such as ANSI/DIN pumps, close-coupled pumps, vertical pumps, and similar machinery, this series conforms to key industry pump standards and is readily available.

Features
Specifications
Installation View

Features

Design:
• Optimized design for the running face
• Space-saving cartridge design

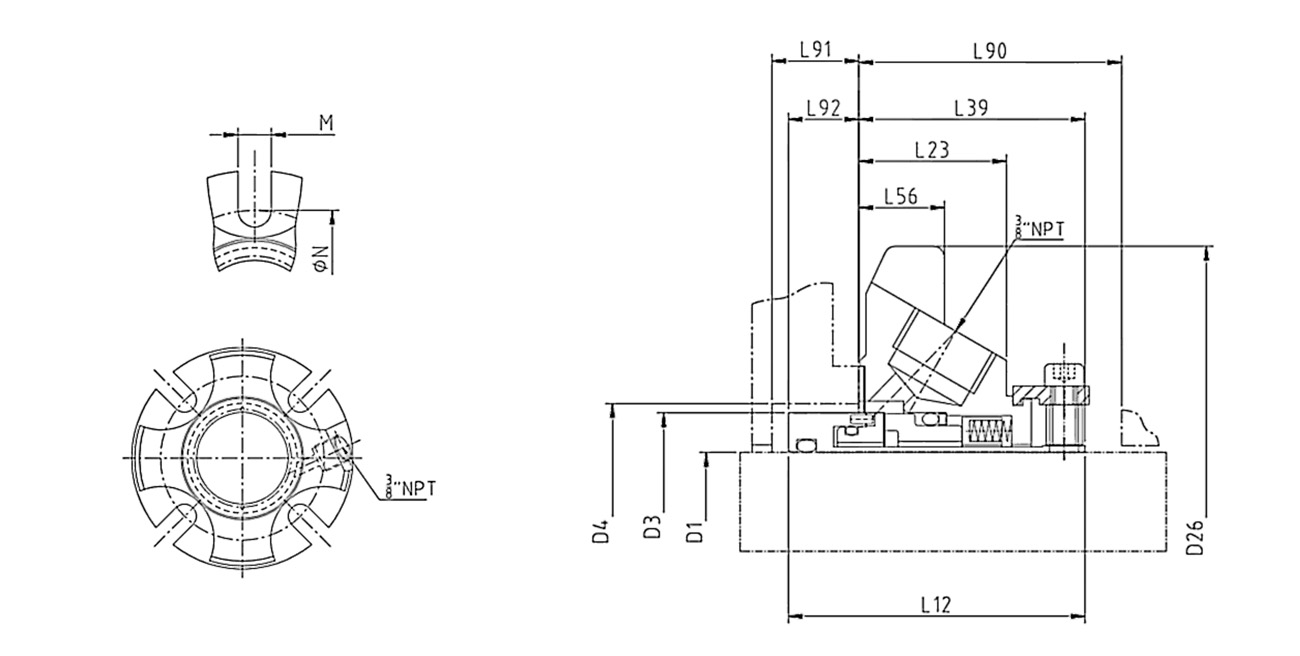

Installation View

PZ46 Standard Bore

SIZE inch	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE inch	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.375	1.625	1.889	4.000	1.989	0.945	1.535	0.598	2.000	0.160	0.453	0.525	2.805
1.125	1.125	1.500	1.752	2.015	4.125	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	2.933
1.250	1.250	1.625	1.874	2.294	4.250	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.213
1.376	1.376	1.750	2.000	2.421	4.375	2.062	1.031	1.579	0.598	2.125	0.125	0.492	0.525	3.338
1.500	1.500	1.937	2.252	2.680	4.875	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.525	3.599
1.625	1.625	2.062	2.374	2.812	5.000	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.766
1.750	1.750	3.170	2.480	2.918	5.250	2.156	0.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
1.875	1.875	2.312	2.626	2.918	5.250	2.156	1.031	1.591	0.630	2.187	0.156	0.516	0.562	3.875
2.000	2.000	2.437	2.756	3.015	5.500	2.375	1.031	1.890	0.630	2.375	0.187	0.484	0.562	4.000
2.125	2.125	2.562	2.870	3.360	5.859	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.469
2.250	2.250	2.687	3.000	3.485	6.500	2.375	1.169	1.890	0.630	2.375	0.187	0.484	0.687	4.566
2.375	2.375	2.812	3.126	3.610	6.500	2.484	1.283	2.047	0.685	2.528	0.143	0.437	0.687	4.719
2.500	2.500	3.062	3.370	3.091	6.750	2.484	1.283	2.145	0.685	2.625	0.125	0.339	0.687	5.000
2.625	2.625	3.312	3.626	4.062	6.750	2.562	1.193	2.083	0.685	2.562	0.125	0.417	0.687	5.170
2.750	2.750	3.312	3.626	4.062	6.750	2.500	1.193	2.083	0.685	2.562	0.125	0.417	0.687	5.170
2.875	2.875	3.375	3.752	4.189	7.000	2.562	1.291	2.083	0.685	2.562	0.125	0.417	0.687	5.312
3.000	3.000	3.625	4.000	4.469	7.750	2.562	1.315	2.146	0.744	2.625	0.125	0.354	0.812	5.720
3.125	3.125	3.750	4.126	4.600	7.875	2.562	1.161	2.146	***	2.687	0.125	0.417	0.812	5.845
3.250	3.250	3.750	4.134	4.600	7.437	2.562	1.161	2.094	***	2.635	0.177	0.469	0.812	5.845
3.375	3.375	4.000	4.374	4.850	8.125	2.562	1.161	2.146	***	2.687	0.125	0.417	0.812	6.095
3.500	3.500	4.125	4.500	4.975	8.250	2.562	1.161	2.146	***	2.687	0.125	0.417	0.812	6.220
3.625	3.625	4.218	4.626	5.100	8.375	2.562	1.161	2.146	***	2.687	0.125	0.417	0.687	6.250
3.750	3.750	4.343	4.724	3.199	8.750	2.562	1.161	2.146	***	2.687	0.125	0.417	0.687	6.770
3.875	3.875	4.468	4.874	5.375	8.750	2.562	1.161	2.146	***	2.687	0.125	0.417	0.812	6.636
4.000	4.000	4.593	5.000	5.500	9.000	2.562	1.161	2.146	***	2.687	0.125	0.417	0.812	6.761

SIZE mm	D1	D3	D4		D26	L12	L23	L39	L56	L91	M	N
SIZE mm	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L91	M	N
25.0	25.0	39.7	41.3	48.0	98.6	50.5	24.0	39.0	15.2	11.5	13.3	69.2
28.0	28.0	42.9	44.5	51.2	101.8	52.6	26.2	40.1	15.2	12.5	13.3	72.5
30.0	30.0	44.5	46.1	56.5	105.0	52.6	26.2	40.1	15.2	12.5	13.3	76.9
32.0	32.0	46.0	47.6	58.3	105.0	52.6	26.2	40.1	15.2	12.5	13.3	78.6
35.0	35.0	49.0	50.8	61.5	108.1	52.6	26.2	40.1	15.2	12.5	13.3	81.8
38.0	38.0	55.2	57.2	68.1	120.8	53.5	26.2	40.4	16.0	13.1	13.3	88.4
40.0	40.0	58.4	60.3	71.4	124.0	53.5	26.2	40.4	16.0	13.1	14.3	92.7
45.0	45.0	60.8	63.0	74.1	127.0	53.5	26.2	40.4	16.0	13.1	14.3	95.4
48.0	48.0	64.3	66.7	74.1	127.0	53.5	26.2	40.4	16.0	13.1	14.3	95.4
50.0	50.0	67.6	70.0	76.6	136.7	58.7	29.7	48.0	16.0	12.3	14.3	98.6
53.0	53.0	70.8	73.0	85.3	145.8	58.7	29.7	48.0	16.0	12.3	17.4	110.5
55.0	55.0	72.6	75.0	85.3	145.8	58.7	29.7	48.0	16.0	12.3	17.4	110.5
58.0	58.0	73.9	76.2	88.5	162.1	58.7	29.7	48.0	16.0	12.3	17.4	113.0
60.0	60.0	77.1	79.4	91.7	162.1	63.1	32.6	52.0	17.4	11.1	17.4	116.9
65.0	65.0	83.5	85.7	98.8	168.5	63.1	32.6	54.5	17.4	8.6	17.4	124.0
70.0	70.0	89.9	92.1	103.2	168.5	63.5	30.3	52.9	17.4	10.6	17.4	128.3
73.0	73.0	91.5	95.3	106.3	174.8	63.5	32.8	52.9	17.4	10.6	17.4	131.9
75.0	75.0	97.8	101.6	113.5	193.9	63.5	33.4	54.5	18.9	9.0	20.6	142.3
80.0	80.0	101.9	105.0	116.8	185.9	65.1	29.5	53.2	***	11.9	20.6	145.4
85.0	85.0	107.5	111.1	123.2	203.4	65.1	29.5	54.5	***	10.6	20.6	151.8
90.0	90.0	114.0	117.5	129.5	209.7	65.1	29.5	54.5	***	10.6	17.4	155.8
95.0	95.0	117.2	120.0	132.1	219.3	65.1	29.5	54.5	***	10.6	17.4	169.0
100.0	100.0	123.5	127.0	139.7	225.6	65.1	29.5	54.5	***	10.6	20.6	168.7

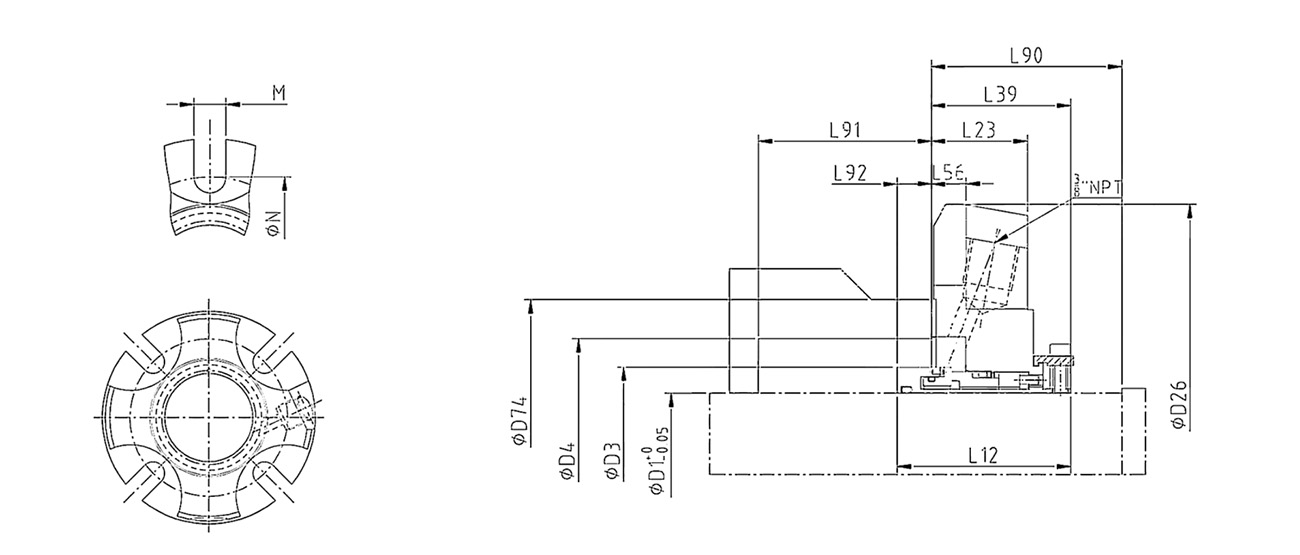

PZ46 Big Bore

23A Big Bore.jpg

Size (Inch)	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
Size (Inch)	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N	D74
1.375	1.375	1.75	2.875	3.023	5.375	2.062	0.031	1.579	0.598	2.125	0.125	0.492	0.525	4.062	3.268
1.75	1.75	3.17	3.5	3.925	6.5	2.156	0.031	1.591	0.63	2.187	0.156	0.516	0.562	5.093	3.885
1.875	1.875	2.312	3.625	3.734	6.5	2.156	1.031	1.591	0.63	2.187	0.156	0.516	0.562	5.093	4.125
2.125	2.125	2.562	3.875	4.25	7.156	2.375	0.169	1.89	0.63	2.375	0.187	0.484	0.687	5.687	4.264
2.5	2.5	3.062	4.75	4.875	8	2.484	1.283	2.146	0.685	2.625	0.125	0.339	0.687	6.062	5.139
2.625	2.625	3.312	4.625	4.74	8	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.125
2.75	2.75	3.312	4.75	4.875	8	2.562	0.193	2.083	0.685	2.562	0.125	0.417	0.687	6.062	5.139
