Design:
    •  Edge-welded metal bellows for enhanced flexibility and durability.
    •  Static secondary seal ensures reliable sealing performance.
    •  Standard components provide ease of maintenance and replacement.
    •  Available in single or dual arrangements, with options for shaft-mounted or cartridge configurations.
    •  PJ05 complies with API 682 requirements, ensuring industry-standard performance and reliability.

Features:
    •  Temperature Range: -75°C to +290°C (-100°F to +550°F)  (depending on materials used)
    •  Pressure: Vacuum to 25 barg (360 psig)
    •  Speed: Up to 25 m/s (5,000 fpm)

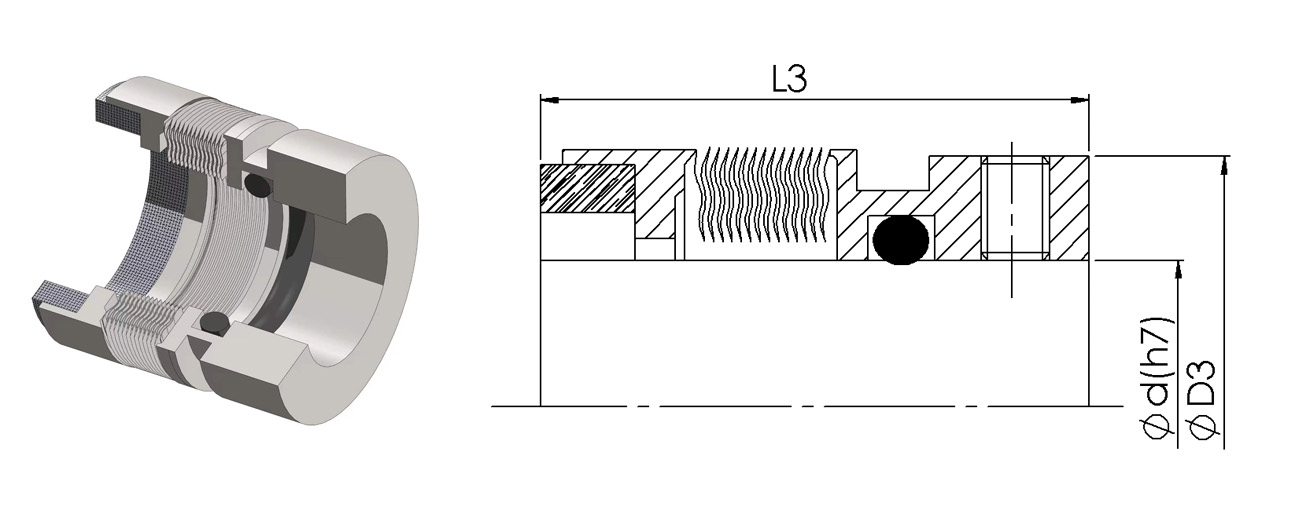

• PJ05

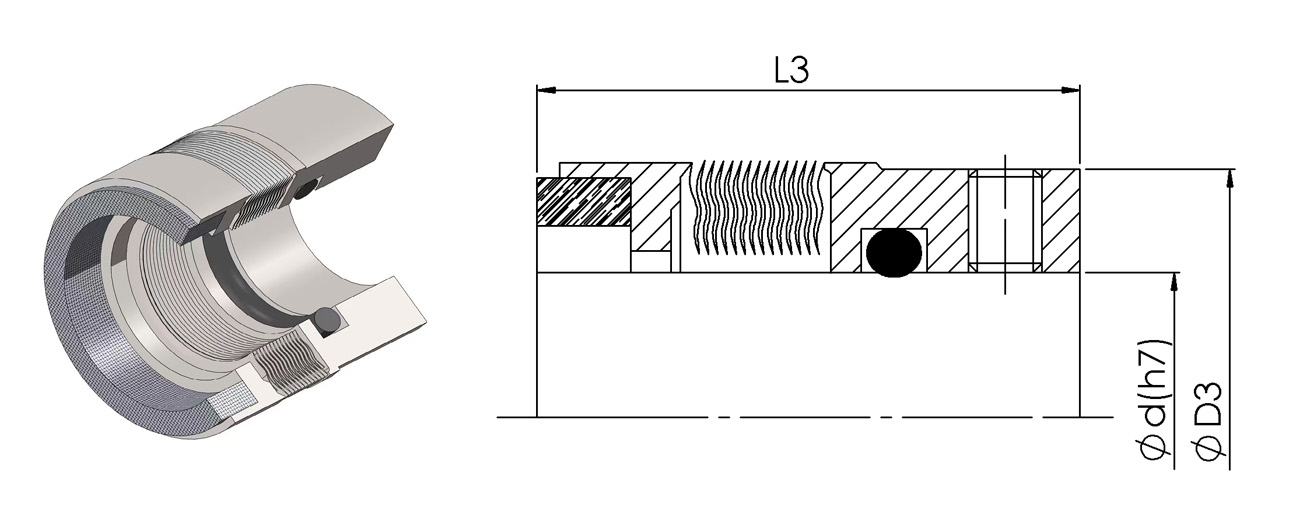

• PJ06

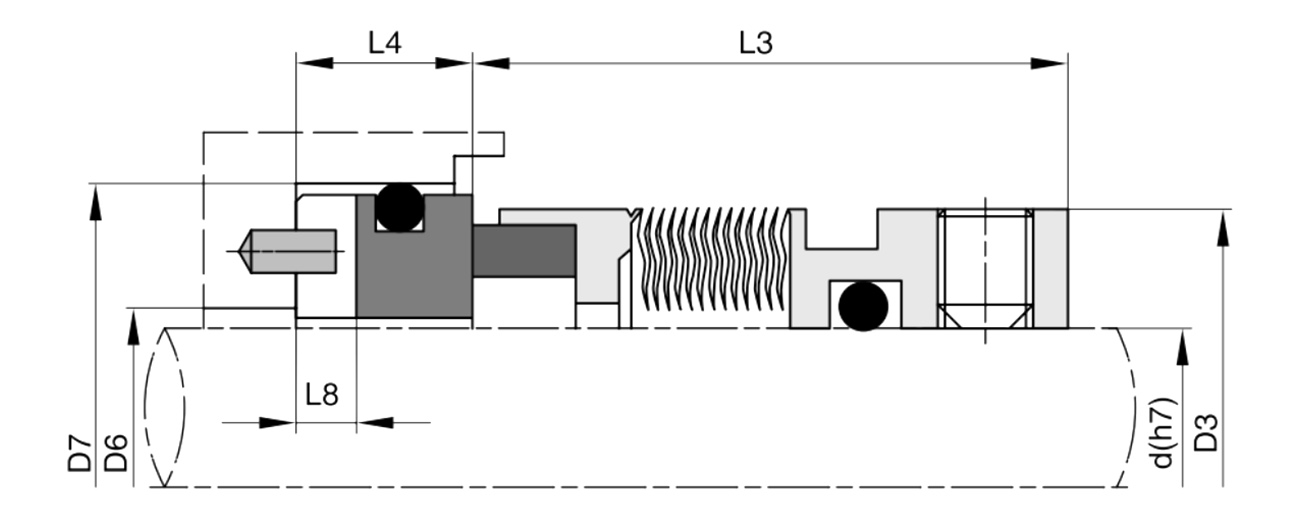

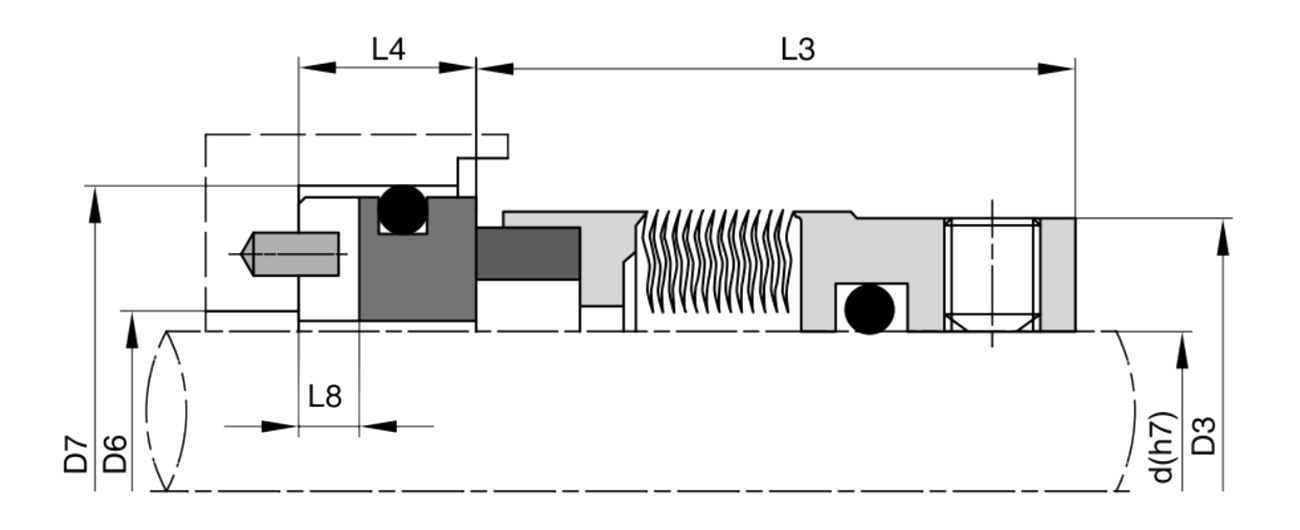

SIZE inch	D3 inch	D3 mm	L3 inch	L3 mm	D7	L4	L8
0.75	1.312	33.32	1.25	31.75
0.875	1.437	36.5	1.25	31.75
0.938	1.5	38.1	1.25	31.75
1	1.562	39.67	1.25	31.75
1.125	1.687	42.85	1.25	31.75
1.25	1.812	46.02	1.312	33.32
1.375	1.937	49.2	1.437	36.5
1.5	2.062	52.37	1.437	36.5
1.625	2.187	55.55	1.437	36.5
1.75	2.312	58.72	1.437	36.5
1.875	2.437	61.9	1.5	38.1
2	2.562	65.07	1.5	38.1
2.125	2.687	68.25	1.5	38.1
2.25	2.812	71.42	1.562	39.67
2.375	2.937	74.6	1.562	39.67
2.5	3.187	80.95	1.562	39.67
2.625	3.312	84.12	1.625	41.28
2.75	3.437	87.3	1.625	41.28
2.875	3.625	92.08	1.687	42.85
3	3.75	95.25	1.687	42.85
3.125	3.875	98.43	1.75	44.45
3.25	4	101.6	1.75	44.45
3.375	4.125	104.78	1.75	44.45
3.5	4.25	107.95	1.875	47.63
3.625	4.375	111.13	1.875	47.63
3.75	4.5	114.3	1.875	47.63
3.875	4.625	117.48	1.875	47.63
4	4.75	120.65	1.875	47.63
4.25	5.187	131.75	1.903	48.34
4.5	5.438	138.13	1.903	48.34
4.75	5.688	144.48	1.903	48.34
5	5.938	150.83	1.903	48.34
5.25	6.213	157.81	1.903	48.34
5.5	6.463	164.16	1.903	48.34
5.75	6.714	170.54	1.903	48.34
6	6.964	176.89	1.903	48.34
6.5	7.47	189.74	1.903	48.34
6.75	7.721	196.11	1.903	48.34
7	7.971	202.46	1.903	48.34




SIZE mm	D3 mm	D3 inch	L3 mm	L3 inch	D7	L4	L8
18	32	1.26	27.5	1.083
20	33.32	1.312	27.5	1.083
22	36	1.417	27.5	1.083
24	38.1	1.5	30	1.181
25	39	1.535	30	1.181
26	42.85	1.687	32.5	1.28
28	42	1.654	32.5	1.28
30	44	1.732	32.5	1.28
32	46.02	1.812	32.5	1.28
33	47	1.85	32.5	1.28
34	49.2	1.937	32.5	1.28
35	49.2	1.937	32.5	1.28
38	52.37	2.062	34	1.339
40	55.55	2.187	34	1.339
42	58.72	2.312	34	1.339
43	58.72	2.312	34	1.339
44	58.72	2.312	34	1.339
45	58.72	2.312	34	1.339
48	61.09	2.437	34	1.339
50	65.07	2.562	34.5	1.358
52	68.25	2.687	34.5	1.358
53	68.25	2.687	34.5	1.358
54	68.25	2.687	34.5	1.358
55	71	2.795	34.5	1.358
58	74.6	2.937	39.5	1.555
60	74.6	2.937	39.5	1.555
62	80.95	3.187	39.5	1.555
63	80.95	3.187	39.5	1.555
65	84.12	3.312	39.5	1.555
68	87.3	3.437	37.5	1.476
70	87.3	3.437	45	1.772
75	95.25	3.75	45	1.772
80	98.43	3.875	44.5	1.752
85	104.78	4.125	44.5	1.752
90	107.95	4.25	49.5	1.949
95	114.3	4.5	49.5	1.949
100	120.65	4.75	49.5	1.949
102	120.65	4.75	49.5	1.949
105	131.75	5.187	48.33	1.903
110	138.13	5.438	48.33	1.903
115	144.48	5.688	48.33	1.903
120	144.48	5.688	48.33	1.903
125	150.83	5.938	48.33	1.903
130	157.81	6.213	48.33	1.903
140	170.54	6.714	48.33	1.903
150	176.89	6.944	48.33	1.903
