PZ05 / PZ05Q-Single Cartridge Type-TF Seals USA

Elastomer Bellow Mechanical Seal TF PB01

Elastomer Bellow Mechanical Seal TF PB05

Elastomer Bellow Mechanical Seal TF PB07

Elastomer Bellow Mechanical Seal TF PB20

The Type PZ05 single seal arrangements feature an edge-welded metal bellows seal head. The common seal head/mating ring set is reversible, allowing for either rotating seal head operation or rotating seat/mating ring, and is compatible with O-ring seal heads. Additionally, the PZ05 Series offers quench options, including a carbon ring throttle bush (PZ05Q), providing enhanced versatility and performance across all versions.

Features
Specifications
Installation View

Features

Design:
• Reversible seal head
• Compliant with ANSI B73.1M and DIN 24960 pump standards
• Modular design for flexibility
• Optimized pressure-balanced construction

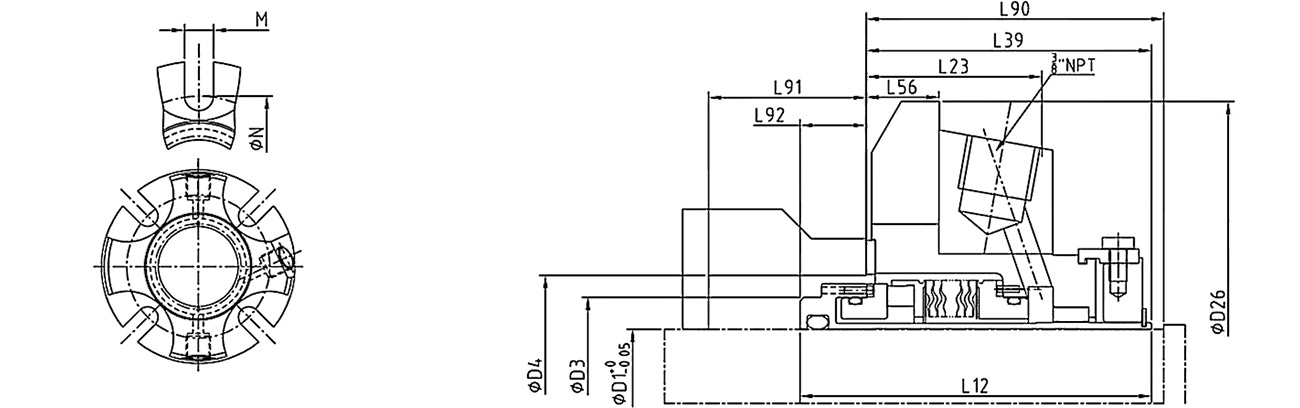

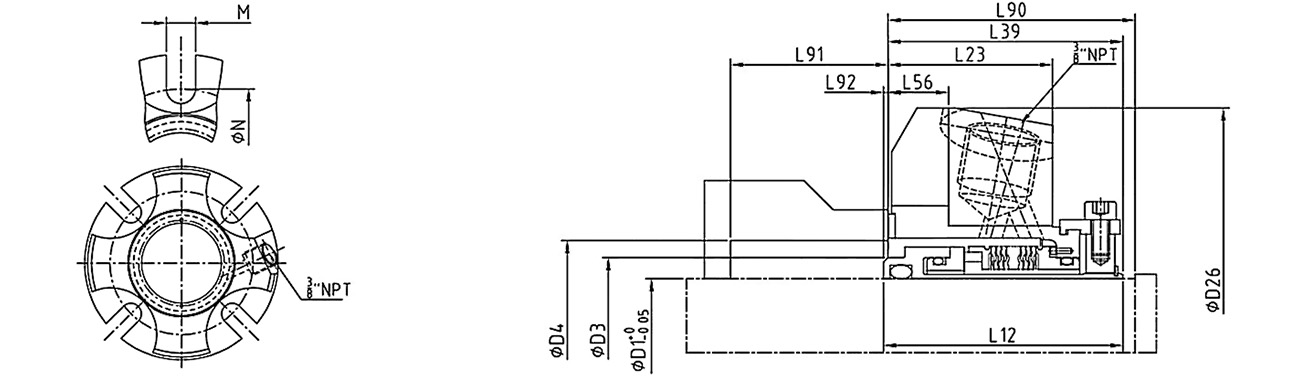

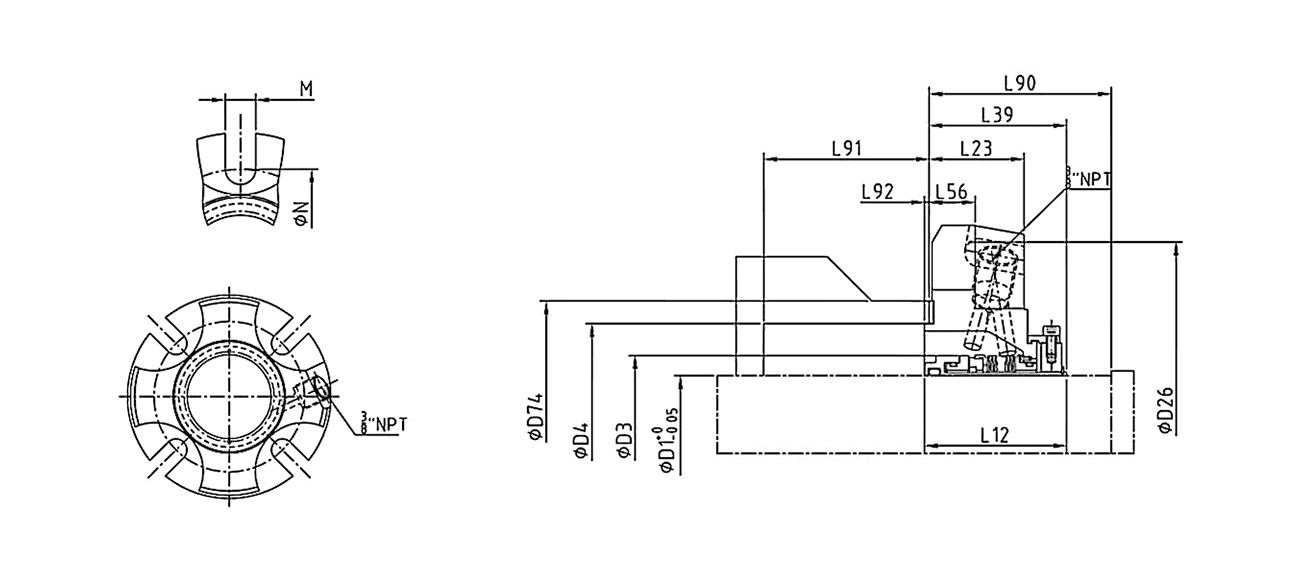

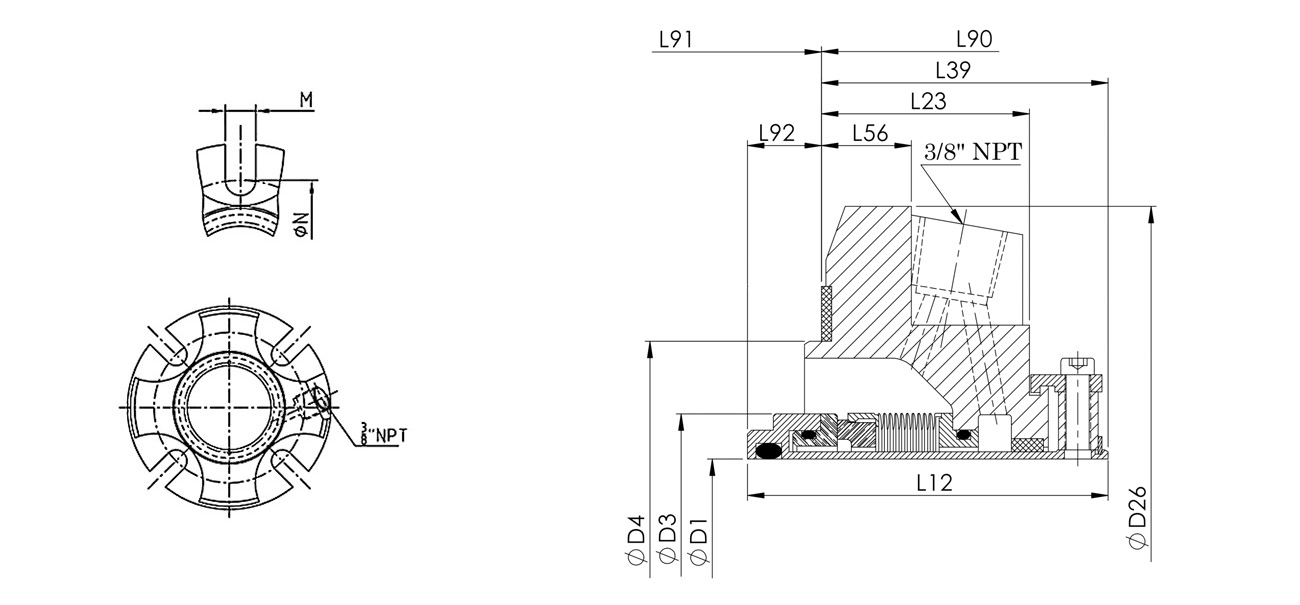

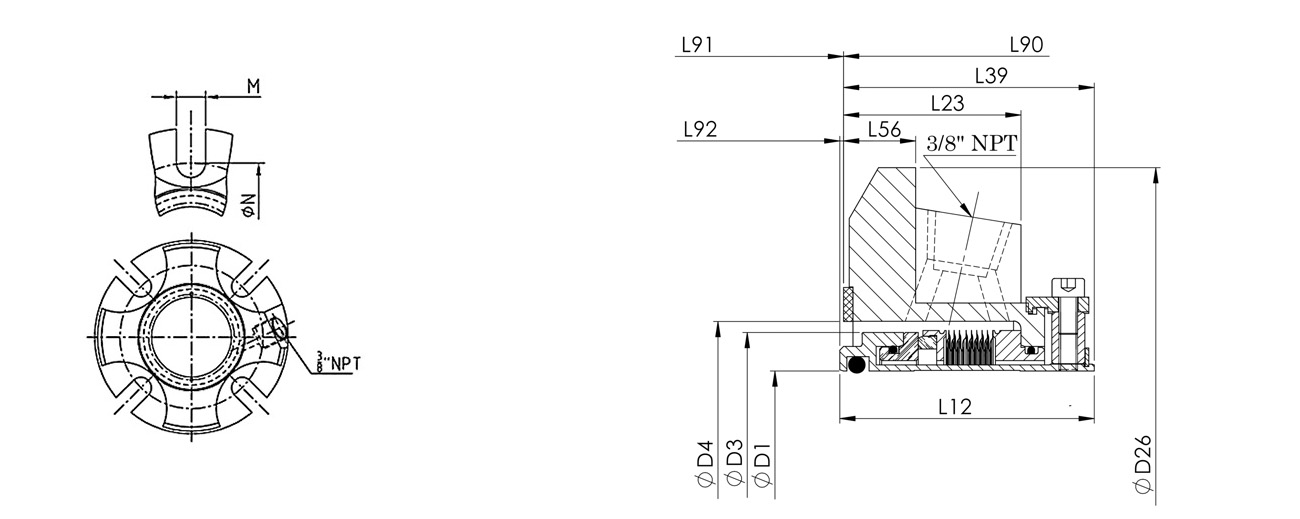

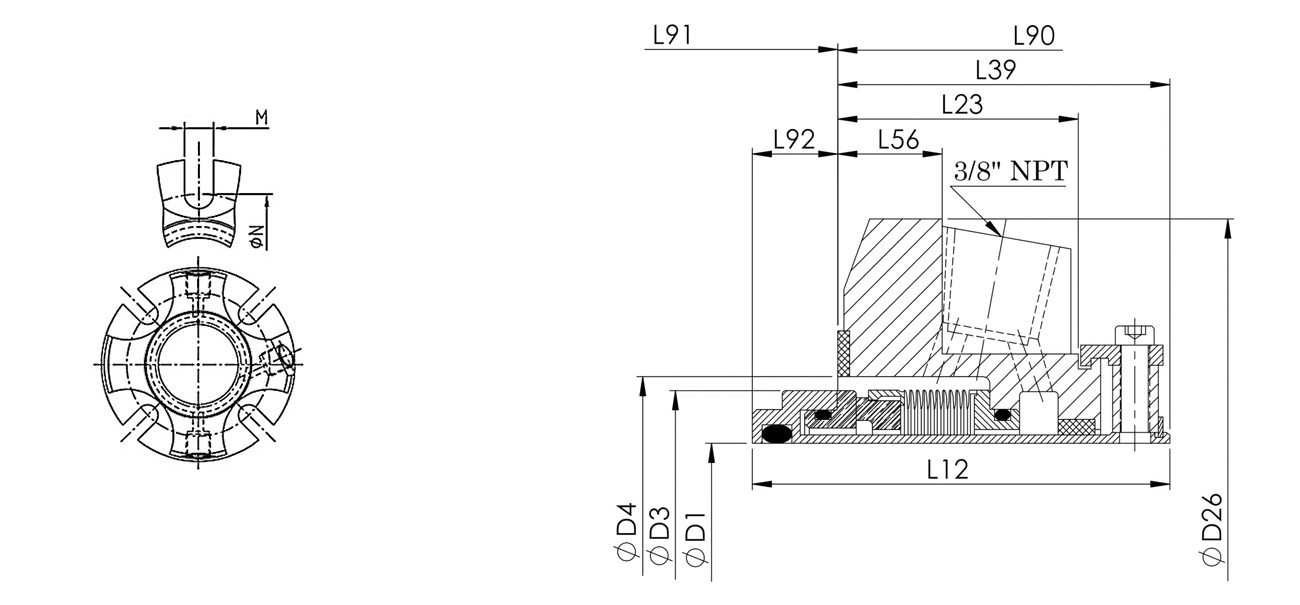

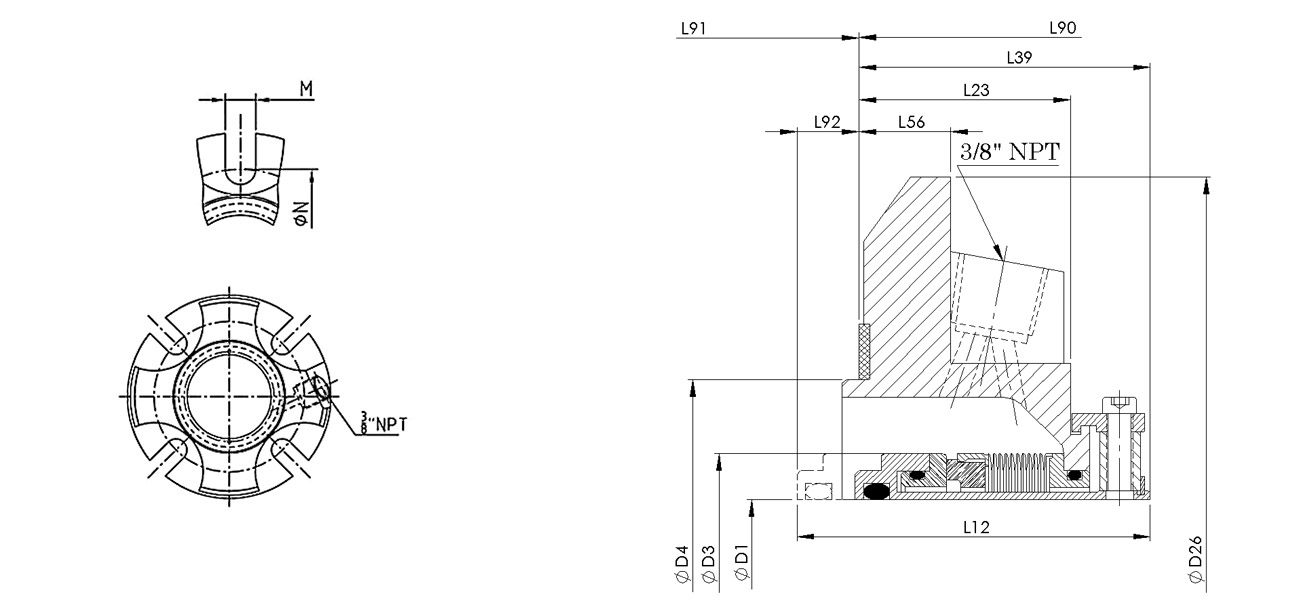

Installation View

PZ05 Standard

SIZE inch	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE inch	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.000	1.000	1.375	1.445	1.889	4.000	1.989	1.353	1.954	0.531	2.000	0.160	0.035	0.525	2.805
1.125	1.125	1.500	***	2.015	4.125	2.062	1.446	2.062	0.531	2.125	0.125	***	0.525	2.933
1.250	1.250	1.625	***	2.294	4.250	2.062	1.446	2.062	0.531	2.125	0.125	***	0.525	3.213
1.375	1.375	1.750	***	2.421	4.375	2.062	1.446	2.062	0.531	2.125	0.125	***	0.525	3.338
1.500	1.500	1.937	2.007	2.680	4.875	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.525	3.599
1.625	1.625	2.062	2.132	2.812	5.000	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.766
1.750	1.750	2.170	2.240	2.918	5.250	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.875
1.875	1.875	2.312	2.382	2.918	5.250	2.156	1.487	2.125	0.593	2.187	0.156	0.031	0.562	3.875
2.000	2.000	2.437	2.507	3.015	5.500	2.375	1.601	2.312	1.063	2.375	0.187	0.062	0.562	4.000
2.125	2.125	2.562	2.632	3.360	5.859	2.375	1.601	2.312	0.593	2.375	0.187	0.062	0.687	4.469
2.250	2.250	2.687	2.757	3.485	6.500	2.375	1.601	2.312	0.593	2.375	0.187	0.062	0.687	4.566
2.375	2.375	2.812	2.882	3.610	6.500	2.484	1.717	2.466	0.625	2.528	0.143	0.018	0.687	4.719
2.500	2.500	3.062	***	3.891	6.750	2.484	1.717	2.562	0.625	2.625	0.125	***	0.687	5.000
2.625	2.625	3.312	***	4.062	6.750	2.500	1.625	2.500	0.625	2.562	0.125	***	0.687	5.170
2.750	2.750	3.312	***	4.062	6.750	2.500	1.625	2.500	0.625	2.562	0.125	***	0.687	4.170
2.875	2.875	3.375	***	4.186	7.000	2.500	1.725	2.500	0.625	2.562	0.125	***	0.687	5.312
3.000	3.000	3.625	***	0.469	7.750	2.500	1.787	2.562	0.685	2.625	0.125	***	0.812	5.720
3.125	3.125	3.750	3.853	4.600	7.875	2.562	1.593	2.562	***	2.687	0.125	***	0.812	5.845
3.250	3.250	3.750	3.853	4.600	7.437	2.562	1.593	2.510	***	2.635	0.177	0.052	0.812	5.845
3.375	3.375	4.000	4.125	4.850	8.125	2.562	1.593	2.562	***	2.687	0.125	***	0.812	6.095
3.500	3.500	4.125	4.250	4.975	8.250	2.562	1.593	2.562	***	2.687	0.125	***	0.812	6.220
3.625	3.625	4.218	4.343	5.100	8.375	2.562	1.593	2.562	***	2.687	0.125	***	0.687	6.250
3.750	3.750	4.343	4.468	5.199	8.750	2.562	1.593	2.562	***	2.687	0.125	***	0.687	6.770
3.875	3.875	4.468	4.593	5.375	8.750	2.562	1.593	2.562	***	2.687	0.125	***	0.812	6.636
4.000	4.000	4.593	4.718	5.500	9.000	2.562	1.593	2.562	***	2.687	0.125	***	0.812	6.761

SIZE mm	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE mm	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
24.0	24	34.9	36.7	48	101.6	50.5	34.4	49.6	13.5	50.8	4	0.9	13.3	71.2
25.0	25	34.9	36.7	48	101.6	50.5	34.4	49.6	13.5	50.8	4	0.9	13.3	71.2
28.0	28	38.1	***	51.2	104.8	52.4	36.7	52.4	13.5	54	3.2	***	13.3	74.5
30.0	30	40	***	56.5	108	52.4	36.7	52.4	13.5	54	3.2	***	13.3	79.9
32.0	32	41.3	***	58.3	108	52.4	36.7	52.4	13.5	54	3.2	**	13.3	81.6
33.0	33	44.5	***	61.5	111.1	52.4	36.7	52.4	13.5	54	3.2	***	13.3	84.8
35.0	35	44.5	***	61.5	111.1	52.4	36.7	52.4	13.5	54	3.2	***	13.3	84.8
38.0	38	49.2	51	68.1	123.8	54.8	37.8	54	15.1	55.5	4	0.8	13.3	91.4
40.0	40	52.4	54.2	71.4	127	54.8	37.8	54	15.1	55.5	4	0.8	14.3	95.7
42.0	42	55.6	57.4	74.6	130.2	54.8	37.8	54	15.1	55.5	4	0.8	14.3	99.1
45.0	45	60.3	62.2	79.4	133.4	54.8	37.8	54	15.1	55.5	4	0.8	14.3	104.1
48.0	48	63.5	65.5	82.6	139.7	54.8	37.8	54	15.1	55.5	4	0.8	14.3	108
50.0	50	65.1	67.1	85.8	142.9	54.8	37.8	54	15.1	55.5	4	0.8	14.3	111.3
52.0	52	69.9	71.9	90.6	146.1	54.8	37.8	54	15.1	55.5	4	0.8	14.3	116.3
55.0	55	74.6	76.6	95.4	152.4	54.8	37.8	54	15.1	55.5	4	0.8	14.3	121.3
58.0	58	77.8	79.8	98.6	155.6	54.8	37.8	54	15.1	55.5	4	0.8	14.3	124.5
60.0	60	79.4	81.4	101.8	158.8	54.8	37.8	54	15.1	55.5	4	0.8	14.3	127.7
62.0	62	82.6	84.6	105	161.9	54.8	37.8	54	15.1	55.5	4	0.8	14.3	131
65.0	65	84.1	***	103.2	171.5	63.5	41.3	63.5	15.9	65.1	3.2	***	17.4	131.3
70.0	70	84.1	***	103.2	171.5	63.5	41.3	63.5	15.9	65.1	3.2	***	17.4	131.3
75.0	75	92.1	***	113.5	196.9	63.5	45.4	65.1	17.4	66.7	3.2	***	20.6	145.3

PZ05Q Standard

SIZE inch	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE inch	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1	1	1.564	1.625	1.889	4	2.575	1.353	1.954	0.531	2	0.746	0.621	0.525	2.805
1.125	1.125	1.689	1.75	2.015	4.125	2.651	1.446	2.062	0.531	2.125	0.714	0.589	0.525	2.933
1.25	1.25	1.812	1.875	2.294	4.25	2.728	1.446	2.062	0.531	2.125	0.791	0.666	0.525	3.213
1.375	1.375	1.939	2	2.421	4.375	2.728	1.446	2.062	0.531	2.125	0.791	0.666	0.525	3.338
1.5	1.5	2.187	2.25	2.68	4.875	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.525	3.599
1.625	1.625	2.312	2.375	2.812	5	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.766
1.75	1.75	2.406	2.48	2.918	5.25	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.875
1.875	1.875	2.549	2.625	2.918	5.25	2.744	1.487	2.125	0.593	2.187	0.744	0.619	0.562	3.875
2	2	2.687	2.75	3.015	5.5	2.963	1.601	2.312	1.063	2.375	0.775	0.65	0.562	4
2.125	2.125	2.798	2.875	3.36	5.859	2.963	1.601	2.312	0.593	2.375	0.775	0.65	0.687	4.469
2.25	2.25	2.937	3	3.485	6.5	2.963	1.601	2.312	0.593	2.375	0.775	0.65	0.687	4.566
2.375	2.375	3.062	3.125	3.61	6.5	3.063	1.717	2.466	0.625	2.528	0.722	0.597	0.687	4.719
2.5	2.5	3.301	3.375	3.891	6.75	2.98	1.717	2.563	0.625	2.625	0.542	0.417	0.687	5
2.625	2.625	3.551	3.625	4.062	6.75	3.088	1.625	2.5	0.625	2.562	0.713	0.588	0.687	5.17
2.75	2.75	3.551	3.625	4.062	6.75	3.088	1.625	2.5	0.625	2.562	0.713	0.588	0.687	5.17
2.875	2.875	3.687	3.75	4.186	7	3.088	1.725	2.5	0.625	2.562	0.713	0.588	0.687	5.312
3	3	3.937	4	4.469	7.75	3.088	1.787	2.562	0.685	2.625	0.651	0.526	0.812	5.72
3.125	3.125	3.75	3.853	4.6	7.875	3.156	1.593	2.562	***	2.687	0.719	0.594	0.812	5.845
3.25	3.25	3.75	3.853	4.6	7437	3.093	1.593	2.51	***	2.635	0.708	0.583	0.812	5.845
3.375	3.375	4	4.125	4.85	8.125	3.156	1.593	2.562	***	2.687	0.719	0.594	0.812	6.095
3.5	3.5	4.125	4.25	4.975	8.25	3.156	1.593	2.562	***	2.687	0.719	0.594	0.812	6.22
3.625	3.625	4.218	4.343	5.1	8.375	3.156	1.593	2.562	***	2.687	0.719	0.594	0.687	6.25
3.75	3.75	4.343	4.468	5.199	8.75	3.156	1.593	2.562	***	2.687	0.719	0.594	0.687	6.77
3.875	3.875	4.468	4.593	5.375	8.75	3.156	1.593	2.562	***	2.687	0.719	0.594	0.812	6.636
4	4	4.593	4.718	5.5	9	3.156	1.593	2.562	***	2.687	0.719	0.594	0.812	6.761

SIZE mm	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE mm	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
24	24	39.7	41.3	48	101.6	65.4	34.4	49.6	13.5	50.8	18.9	15.8	13.3	71.2
25	25	39.7	41.3	48	101.6	65.4	34.4	49.6	13.5	50.8	18.9	15.8	13.3	71.2
28	28	42.9	44.5	51.2	104.8	67.3	36.7	52.4	13.5	54	18.1	15	13.3	74.5
30	30	44.5	46.1	56.5	108	65.1	36.7	52.4	13.5	54	15.9	12.7	13.3	79.9
32	32	46	47.6	58.3	108	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	81.6
33	33	49.3	50.8	61.5	111.1	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	84.8
35	35	49.3	50.8	61.5	111.1	69.3	36.7	52.4	13.5	54	20.1	16.9	13.3	84.8
38	38	55.5	57.2	68.1	123.8	69.7	37.8	54	15.1	55.5	18.9	15.7	13.3	91.4
40	40	58.7	60.3	71.4	127	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	95.7
43	43	61.1	63	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
45	45	61.1	63	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
48	48	65.1	66.7	74.1	133.4	69.7	37.8	54	15.1	55.5	18.9	15.7	14.3	98.4
50	50	68.3	70	76.6	139.7	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	101.6
52	52	69.9	71.4	76.6	139.7	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	101.6
55	55	74.6	76.2	81.4	152.4	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	106.3
58	58	77.8	79.4	84.6	155.6	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	109.5
60	60	79.4	81	87.4	158.8	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	112.7
62	62	82.6	84.1	90.6	161.9	75.3	40.7	58.7	27	60.3	19.7	16.5	14.3	115.9
65	65	90.5	92.1	103.2	171.5	78.4	41.3	63.5	15.9	65.1	18.1	14.9	17.4	131.3
70	70	90.5	92.1	103.2	171.5	78.4	41.3	63.5	15.9	65.1	18.1	14.9	17.4	131.3
75	75	100	101.6	113.5	196.9	78.4	45.4	65.1	17.4	66.7	16.5	13.4	20.6	145.3

PZ05 Big Bore

SIZE inch	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE inch	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.375	1.375	1.750	2.875	3.023	5.375	2.062	1.446	2.062	0.625	2.125	0.250	0.125	0.562	4.062
1.750	1.750	2.170	3.500	3.925	6.500	2.156	1.487	2.125	0.656	2.187	0.250	0.125	0.687	5.093
1.875	1.875	2.312	3.625	3.734	6.500	2.156	1.316	1.954	0.485	2.017	0.327	0.202	0.687	5.093
2.125	2.125	2.562	3.875	4.250	7.156	2.375	1.570	2.282	0.749	2.407	0.219	0.094	0.687	5.687
2.500	2.500	3.062	4.750	5.078	8.000	2.484	1.697	2.407	0.749	2.625	0.204	0.079	0.687	6.062
2.625	2.625	3.312	4.625	4.740	8.000	2.500	1.617	2.329	0.578	2.454	0.296	0.171	0.687	6.062
2.750	2.750	3.312	4.750	4.875	8.000	2.500	1.697	2.407	0.656	2.532	0.218	0.093	0.687	6.062

PZ05Q Big Bore

SIZE inch	D1	D3	D4		D26	L12	L23	L39	L56	L90	L91	L92	M	N
SIZE inch	D1	D3	MIN	MAX	D26	L12	L23	L39	L56	L90	L91	L92	M	N
1.375	1.375	1.939	2.875	3.023	5.375	2.728	1.446	2.062	0.625	2.125	0.791	0.666	0.562	4.062
1.750	1.750	2.406	3.500	3.925	6.500	2.744	1.487	2.125	0.656	2.187	0.744	0.619	0.687	5.093
1.875	1.875	2.549	3.625	3.734	6.500	2.744	1.316	1.954	0.485	2.017	0.915	0.790	0.687	5.093
2.125	2.125	2.798	3.875	4.250	7.156	2.963	1.570	2.282	0.749	2.407	0.806	0.681	0.687	5.687
2.500	2.500	3.301	4.750	4.875	8.000	2.980	1.697	2.407	0.656	2.532	0.698	0.573	0.687	6.062
2.625	2.625	3.551	4.625	4.740	8.000	3.088	1.617	2.329	0.578	2.454	0.884	0.759	0.687	6.062
2.750	2.750	3.551	4.750	4.875	8.000	3.088	1.697	2.407	0.565	2.532	0.806	0.681	0.687	6.062
